Engine model | Weichai WD10G178E25 |
---|---|
Rated power/rated speed | 131kw/1850rpm |
Working capacity | 3.2 m³ |

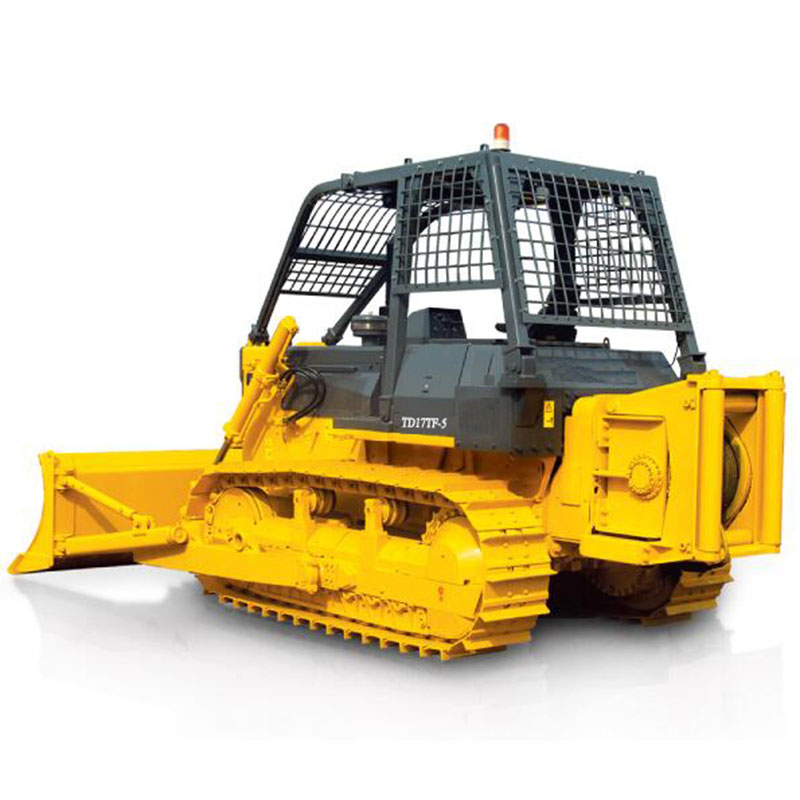

The TD17TF-5 series was developed according to the needs of forest work environments, and can be equipped with load steering and in place steering, with high flexibility and efficiency, and low fuel consumption rate;
Hydraulic pilot control of the working device, simple and sensitive operation;
Modular structure, low failure rate, easy to maintain;
The forward extended anti roll frame effectively protects the entire machine, with advanced and reasonable structure, stable performance, and easy and flexible operation.
Suitable for construction operations in forest logging sites, and equipped with a winch at the rear of the bulldozer to complete forest logging transportation and other operations that require traction. Equipped with a winch for dangerous areas, the bulldozer can be used for self rescue if necessary.
Work weight | 17500 kg |
---|---|
Grounding voltage | 55 kpa |
Rated power/rated speed | 131kw/1850rpm |
Working capacity | 3.2 m³ |
Blade lift height | 1095 mm |
Soil depth | 540 mm |
Engine model | Weichai WD10G178E25 |
